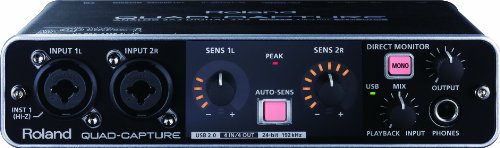

Roland QuadCapture Audio Interface Info
Products Brand : RolandSaving Price : Click Here! >>
You may have time to decide to not very much. We offer you to hurry check item price.
Roland QuadCapture Audio Interface Details
USB 2.0 Audio Interface
With a pair of premium VS Preamps onboard, plus superb 24-bit/192 kHz audio quality, ultra-low latency performance, and convenient USB bus power, Quad-Capture sets a new standard for portable USB 2.0 audio interfaces. Its compact, durable design and pristine sound makes it the perfect foundation for portable, multi-channel computer-based productions on the go. With quality and performance that far exceeds its size and price, Quad-Capture stands at the head of its class.
VS Preamps
Quad-Capture boasts two premium-grade, digitally controlled mic preamps (VS Preamps) made from the same high-grade components as the preamps found in Roland's V-Studio 700 and M-400 digital mixer. Two XLR/TRS combo inputs are provided for the preamps, plus independent phantom power, low-cut filter, phase invert, and digital compression for each channel. The VS preamps can be controlled easily and intuitively with the included graphical Control Panel software (Mac/PC).
One-Click AUTO-SENS: Automatic Input Level Adjustment
Setting optimum recording levels is an indispensable part of capturing high-quality recordings. If input levels are too high, the sound will distort; if levels are too low, you lose the advantage of the excellent resolution afforded by digital recording, and the sound suffers from signal-to-noise ratio deterioration. To solve these issues, Quad-Capture is equipped with a unique "AUTO-SENS" function that automatically sets the appropriate input level. AUTO-SENS is simple to use for beginners and pros alike: just press the AUTO-SENS button, supply sound input for a short amount of time, and the built-in DSP analyzes the volume and sets the optimum input level. AUTO-SENS is also accessible via a software-based control panel, so you can control it remotely from your computer. This handy feature makes for quick and easy setup during recording sessions.
VS Streaming, with Support for All Major DAWs
Quad-Capture offers incredible stability and industry-leading low-latency USB performance via Roland's proprietary VS Streaming technology. All current Mac and PC Digital Audio Workstation (DAW) platforms are supported through ASIO 2.0/WDM (Windows) and Core Audio (Mac).
Phantom Power, Ground Lift, and Hi-Z Switches
On its rear panel, Quad-Capture features stereo S/P DIF I/O, which allows you to connect a digital device and use it simultaneously with the analog inputs and outputs. Analog outputs are provided on the rear panel as well, supporting balanced or unbalanced connections via 1/4-inch TRS jacks. There are also MIDI IN and OUT jacks (Quad-Capture functions as a MIDI interface, too), as well as switches for phantom power, Hi-Z operation on Input 1, and a ground lift that can be used to eliminate hum that might sometimes occur when connected to other devices.
Also on the rear panel is a USB jack for connecting to your computer. QUAD-CAPTURE gets its power directly from your computer's USB bus, so there's no need to hassle with external adaptors--a single-cable connection is all that's needed. Unlike most bus-powered audio interfaces, Quad-Capture regenerates the incoming power with its own wide-ranging power supply, providing the analog circuitry with the ideal voltage for the very best sound quality and efficiency in mobile environments.
Low-Noise Power Supply
One of Quad-Capture's key "behind-the-scenes" features is its low-noise, wide-ranging power supply. Designed to deliver a clean, balanced input and output, it provides a reliable foundation for any professional audio application or environment. When driven by the USB bus power supply, Quad-Capture's power is regenerated, providing the analog circuitry ideal voltage for the very best sound quality and efficiency in mobile environments.
Aluminum Build, DI Functionality
Quad-Capture is small, strong, and housed in a road-tough aluminum body, so you can transport it anywhere with the confidence that its premium internal components are securely protected. For live-concert environments, Quad-Capture also provides Direct-Box (DI) functionality, essential for noise-free live stage use.
SONAR X1 LE Bundle
Every Quad-Capture package includes a complimentary copy of SONAR X1 LE software for PC that's designed to work fluidly and seamlessly with the interface. Derived from Cakewalk's award-winning SONAR X1 DAW software, the LE version give you a powerful set of software tools for writing, recording, editing, and mixing your music.
What's in the Box?
Roland Quad-Capture USB Audio Interface, owner's manual, Cakewalk SONAR LE DVD-ROM (for Windows), driver CD-ROM, USB cable.
Choose the Roland Audio Interface Right for You
| OCTA-CAPTURE High Speed Audio Interface | QUAD-CAPTURE USB 2.0 Audio Interface | |
|---|---|---|
| Eight premium mic preamps, compact I/O, pristine sound quality | Pro performance for portable production | |
| Number of Audio Record / Playback Channels Sampling Frequency = 96 kHz, 48 kHz, 44.1 kHz | Record: 10 channels Playback: 10 channels | Record: 4 channels Playback: 4 channels |
| Number of Audio Record / Playback Channels Sampling Frequency = 192 kHz | Record: 4 channels Playback: 4 channels | Record: 2 channels Playback: 2 channels |
| Nominal Input Level | Input jack 1-6 (XLR type): -56 to -6 dBu Input jack 7-8 (XLR type): -50 to +0 dBu Input jack 1-8 (1/4-inch TRS phone type): -46 to +4 dBu | Input jack 1, 2 (XLR type): -60 to -6 dBu Input jack 1, 2 (1/4-inch TRS phone type): -50 to +4 dBu |
| Nominal Output Level | Output 1-8: +0 dBu (balanced) | Output 1, 2: +0 dBu (balanced) |
| Headroom | 16 dB | 14 dB |
| Input Impedance | Input jack 1-6 (XLR type): 5 k ohms (balanced) Input jack 7-8 (XLR type): 10 k ohms (balanced) Input jack 1-8 (1/4-inch TRS phone type): 17 k ohms (balanced) | Input jack 1, 2 (XLR type): 4.8 k ohms Input jack 1, 2 (1/4-inch TRS phone type): 15 k ohms (balanced) |
| Output Impedance | Output 1-8: 1.8 k ohms (balanced) Phones: 47 ohms | Output 1, 2: 2 k ohms (balanced) Phones: 47 ohms |
| Residual Noise Level | Main Out: -87 dBu typ. (Gain: min., Input 1-2 terminated with 600 ohms, IHF-A) * Internal Direct Monitor Mixing setting * Stereo Link: On, input channel fader: Unity | Input 1, 2 to Output 1, 2: -95 dBu typ. (Gain: min., 600 ohms terminated, IHF-A) * Internal Direct Monitor Mixer setting * Input channel fader: Unity |
| Dynamic Range | AD Block: Input 1-8: 104 dB typ. (Gain: min.) DA Block: Output 1-8: 113 dB typ. | AS Block: Input 1, 2: 104 dB typ. (Gain: min.) DA Block: Output 1, 2: 109 dB typ. |
| Display | 128 x 64 dots Graphic LCD (backlit LCD) | |
| Connectors |
|
|
